Review PVC Pipe Threading Machine for your component and the required production operation.
Compare the working range with the component
A model intended to cut the specified external thread on suitable PVC pipe with a compatible threading setup must be assessed against the full job dimensions. Supply PVC grade, outside diameter, wall thickness, pipe length and mating thread drawing. Separate overall workpiece size from the portion processed during the operation; a single headline capacity does not describe every possible component.
Check the configuration behind the model data
Use the specification table alongside a review of pipe support, clamping pressure, compatible chasers and clearance at the pipe end. Confirm units and the tool or fixture arrangement included in the proposed model. PVC pipe selection must consider wall thickness and the required connection, as well as nominal pipe size. If more than one component size is needed, list the complete range and discuss the required changeovers.
Confirm the selected model in writing
Specify the acceptance requirements for thread depth, fitting engagement and the condition of the PVC wall after cutting. Ask IMC to identify the model, working range, included tooling and accessories against your drawing. Include material, batch quantities, power supply and delivery location. Select the available options and add the quantity to the Quote List. The final offer should make the configuration and application clear instead of treating the product designation as the complete technical specification.
Model data and technical details supplied for this product. Final configuration can be confirmed against your application.
"

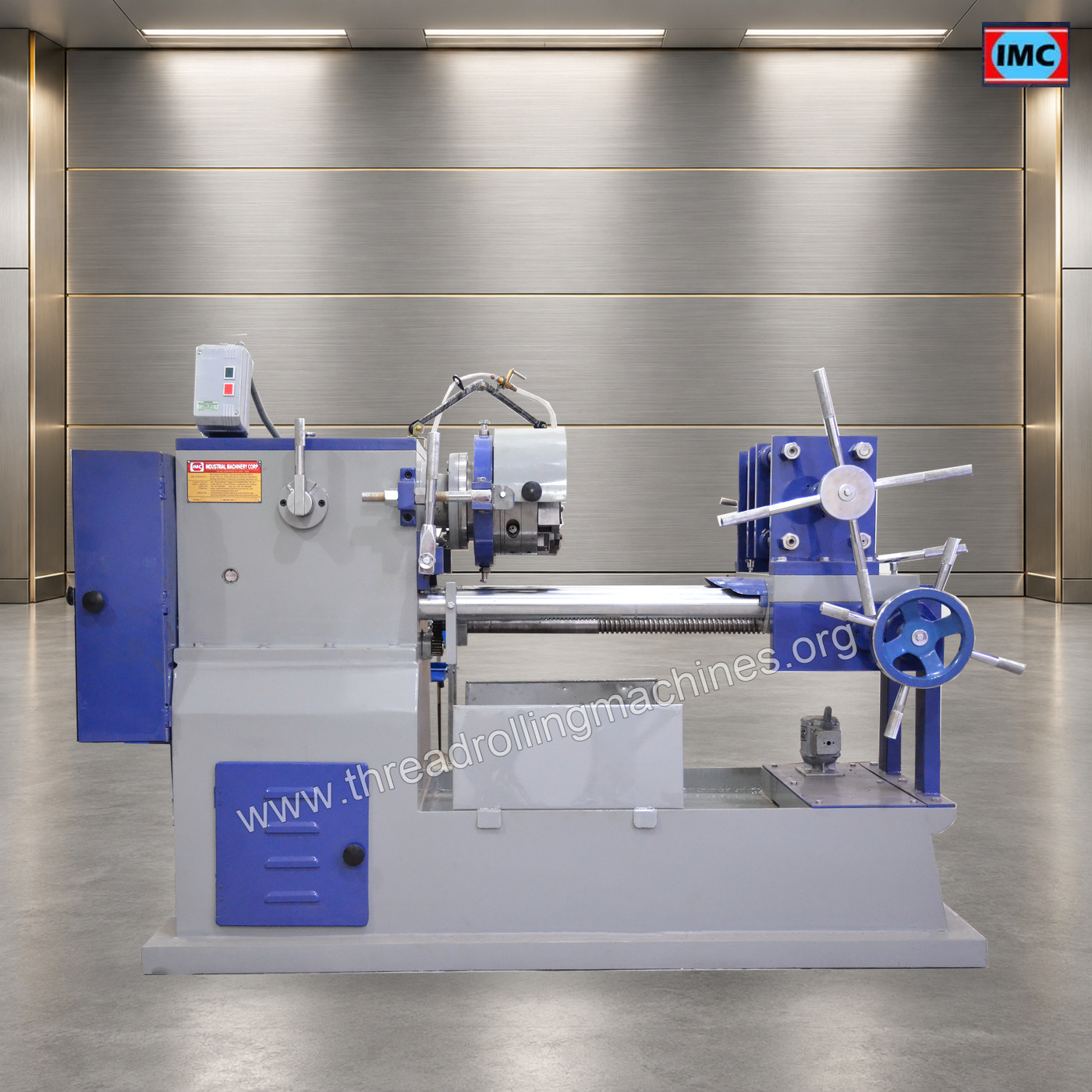

There is a very unique feature of this PVC Pipe Threading Machine which makes it diverse from all other machines and that it has been fitted with a unique double-sided saddle. The best part of this saddle is that being two-sided; it makes two operators work simultaneously in one time which means that this PVC Pipe Threading Machine can produce twice the result in one time. The two users can work on PVC machine and thread PVC pipes from inside and outside in a single time. Here are the names of various threads that PVC Pipe Threading Machine made by industrial machinery corporation can cut:
BSP
MATRIX
BSPT
NPT
UNF
UNC
BSW
Acme Threads

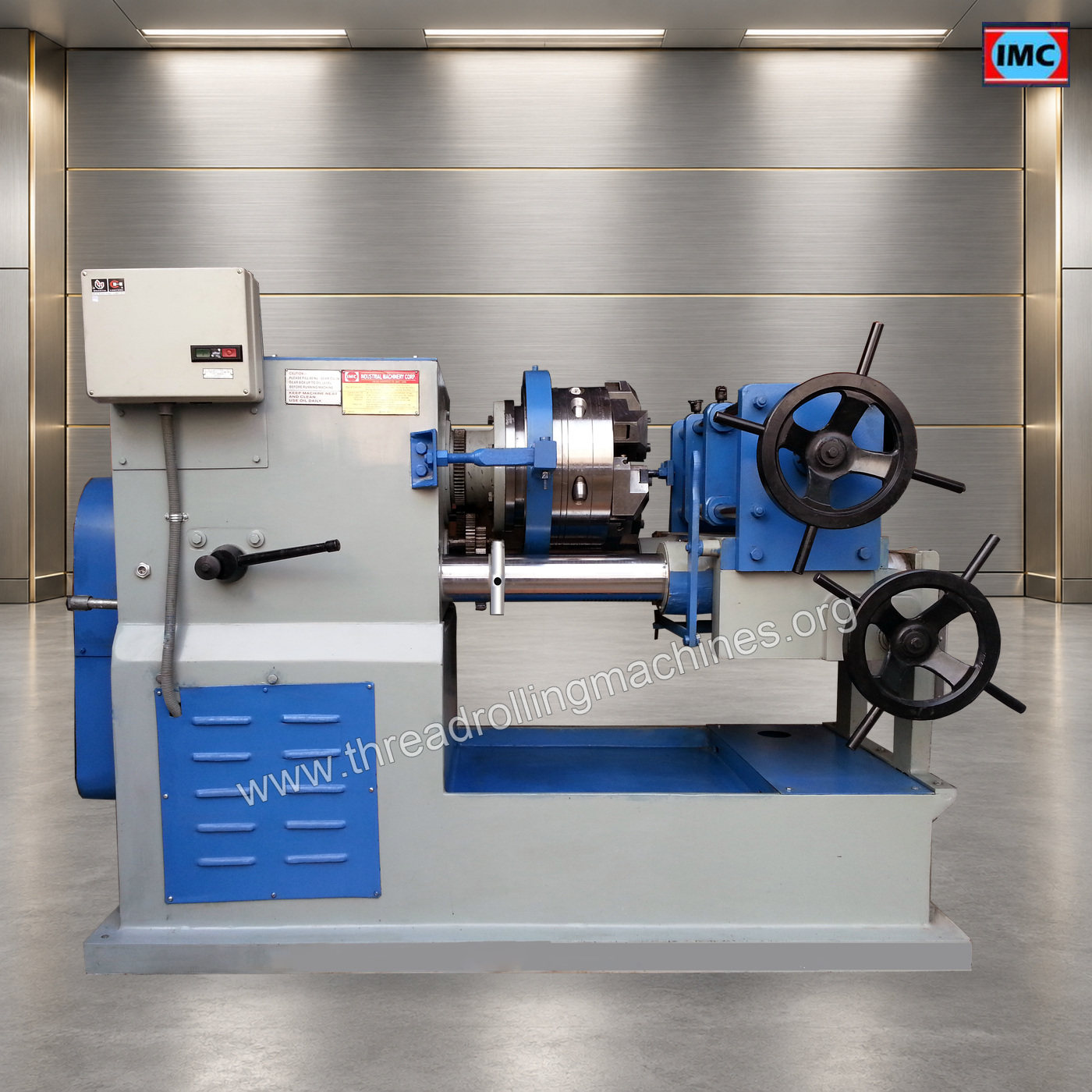

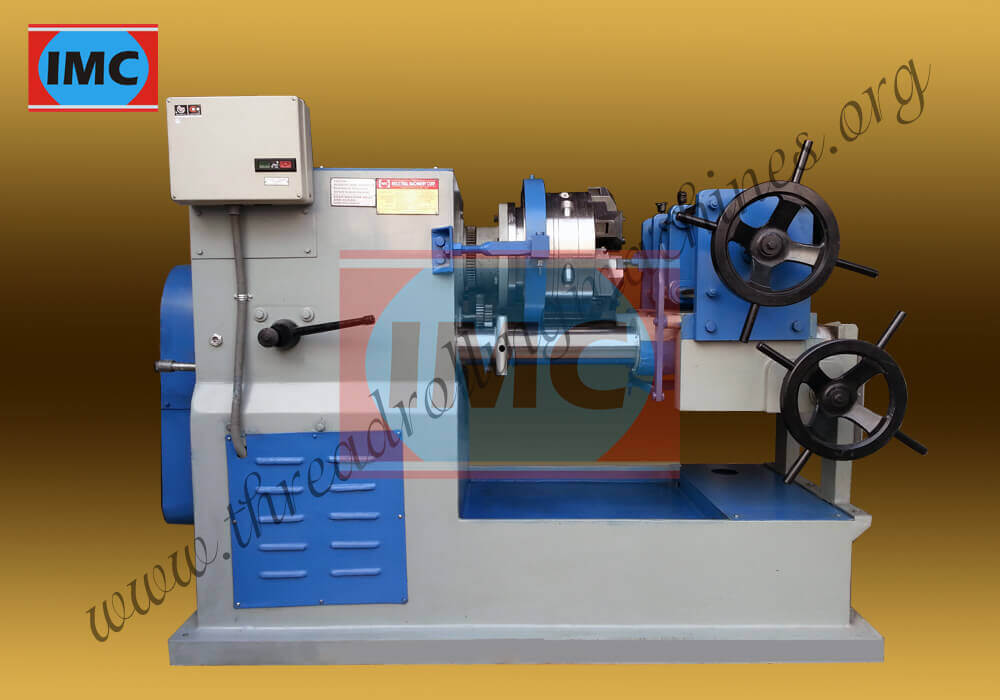

The PVC Pipe Threading Machine that we craft here at our Ludhiana unit has been fitted with a self-opening die head and head stock gears which gives and extra durability and permanence to the machine. This PVC Pipe Threading Machine has a hydraulic cylinder lead screw box nut engaging, one hydraulic pipe clamping cylinder and one hydraulic cylinder for die-head opening with micro switches with automation with control panel. These are some of the power-pack features which allow our PVC pipe threading machine to perform exactly what it has been made for and that is to create accurate threads. The PVC Pipe Threading Machines we make are fully customized as per the requirements of the customer. We make all the gears of our PVC Pipe Threading Machines using the finest quality steel which means that these gears are extra tough.
Following are the names of the parts of our PVC Pipe Threading Machine that combine to make a machine:
Base
Head Stock
Saddle
Pillar Or Bed Type Clamping Vice
Die Head
Specifications:
Model
3/8" to 2"
1/2" to 3"
1" to 4"
2.½" to 6"
4" to 8"
8" to 10"
Saddle Movement
10" - 12"
16"
10" – 12"
8"
8"
8"
Spindle Speed Range
127-180
60-90-120
40-75-115
25-50
25-50
10-20-30
Number of Spindle Speed
2
3
3
2
2
3
Threading Capacity
3/8"to 2"
1/2" to 3"
1" to 4"
2.1/2" to 6"
4" to 8"
8" to 10"
Production per Hour
100-120
70-90
35-40
20-25
15-20
15-20
H.P. Required
3 H.P.
7.5 H.P.
12.5 H.P. 960
15 H.P. 960
20 H.P. 960
30 H.P. 960
Lead Screw
Provided
Provided
Provided
Provided
Provided
Provided
Weight (KG) Approx.
550
990
1600
1900
2500
5000
PVC Pipe Threading Machine Tangential Chaser
IMC Tangential Chasers are manufactured from imported High Speed Steel which must pass exacting metallurgical standard. Experienced heat treatment with the automatic imported heat treatment plant and imported Testing equipment's, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended.
IMC Chaser are interchangeable. If one Pc. of a chaser set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing entire set.
Read More
Frequently Asked Questions About PVC Pipe Threading Machine
Cut specified threads on PVC pipe using appropriate pipe support and tooling. Plastic material and wall thickness require different setup considerations from steel.
For this machine, send PVC pipe diameter, wall thickness, material type and thread profile. Attach the component drawing or a clearly identified sample photograph so the application can be reviewed.
Discuss how the pipe is held without excessive deformation and how the tooling matches the plastic component.
