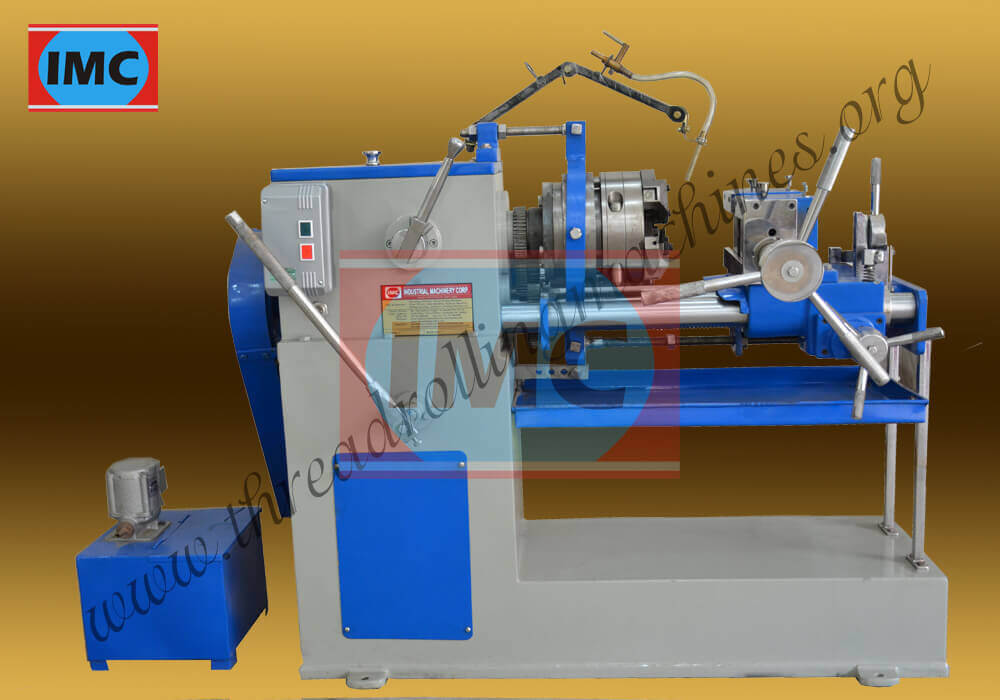

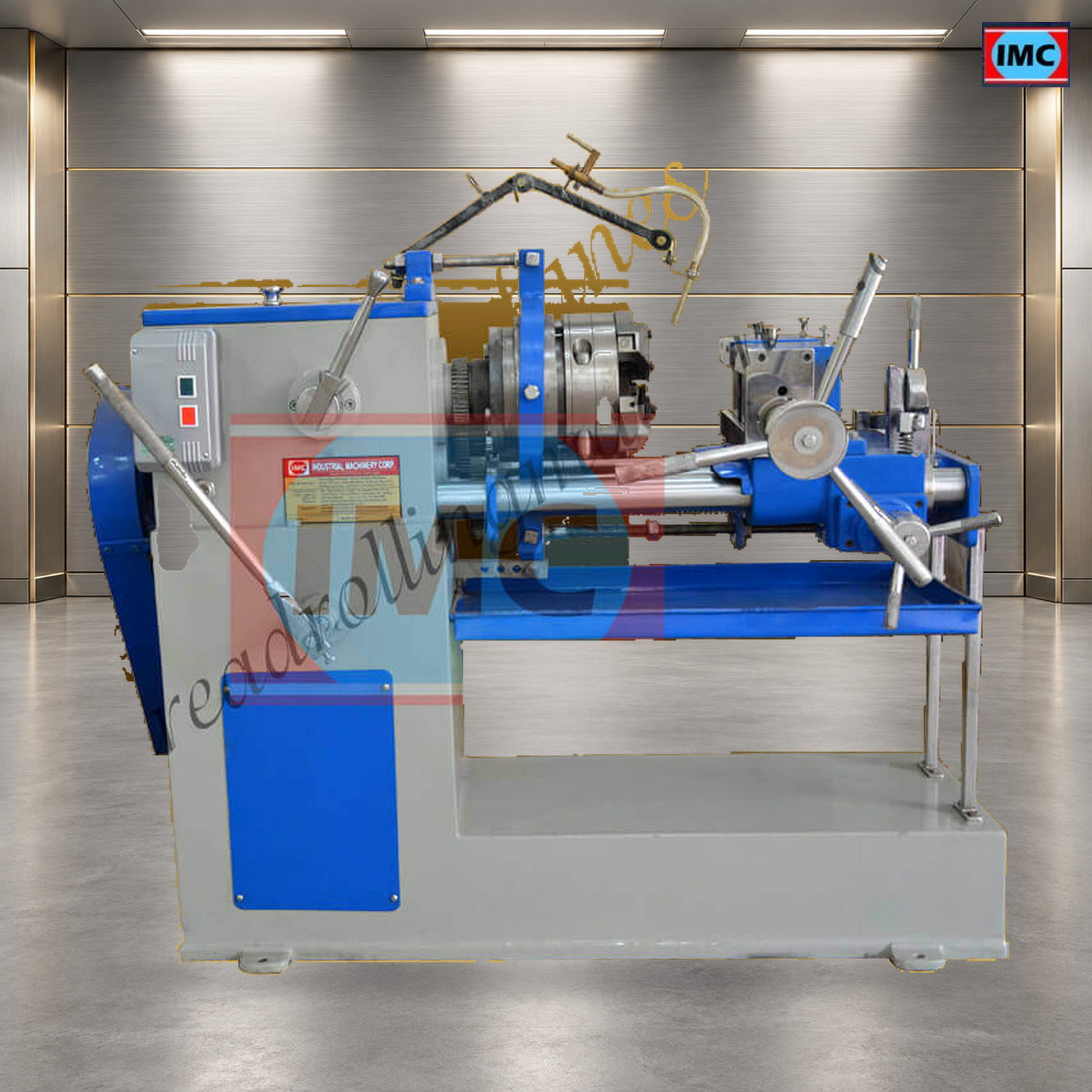

Lanco Type PVC Pipe Threading Machine – Models & Capacity

There is a very unique feature of this machine which makes it diverse from all other machines and that it has been fitted with a unique double sided saddle. The best part of this saddle is that being the two sided; it makes two operators to work simultaneously in one time which means that this machine can produce twice the result in one time. The two users can work on PVC machine and thread PVC pipes from inside and outside in a single time. Here are the names of various threads that Lanco Type PVC Pipe Threading Machine made by industrial machine corporation can cut:

1. BSP
2. MATRIX
3. BSPT
4. NPT
5. UNF
6. UNC
7. BSW
8. Acme Threads

The Lanco Type PVC Pipe Threading Machine that we craft here at our Ludhiana unit has been fitted with a self-opening die head and head stock gears which gives and extra durability and permanence to the machine. This machine has a hydraulic cylinder lead screw box nut engaging, one hydraulic pipe clamping cylinder and one hydraulic cylinder for die-head opening with micro switches with automation with control panel. These are some of the power-pack features which allow our PVC pipe threading machine to perform exactly what it has been made for and that is to create accurate threads. The machines we make are fully customized as per the requirements of the customer. We make all the gears of our Lanco Type PVC Pipe Threading Machine using finest quality steel which means that these gears are extra tough.

Following are the names of the parts of our PVC Pipe Threading Machine that combine together to make a machine:

1. Base
2. Head Stock
3. Saddle
4. Pillar Or Bed Type Clamping Vice
5. Die Head

Specifications:

Model	3/8" to 2"	1/2"to 3"	1" to 4"	2.½" to 6"	4" to 8"	8" to 10"
Saddle Movement	10" - 12"	16"	10" – 12"	8"	8"	8"
Spindle Speed Range	127-180	60-90-120	40-75-115	25-50	25-50	10-20-30
Number of Spindle Speed	2	3	3	2	2	3
Threading Capacity	3/8" to 2"	1/2" to 3"	1" to 4"	2.1/2" to 6"	4" to 8"	8" to 10"
Production per Hour	100-120	70-90	35-40	20-25	15-20	15-20
H.P. Required	3 H.P.	7.5 H.P.	12.5 H.P. 960	15 H.P. 960	20 H.P. 960	30 H.P. 960
Lead Screw	Provided	Provided	Provided	Provided	Provided	Provided
Weight (KG) Approx.	550	990	1600	1900	2500	5000

Lanco Type PVC Pipe Threading Machine Tangential Chaser

IMC Tangential Chasers are manufactured from imported High Speed Steel which must pass exacting metallurgical standard. Experienced heat treatment with the automatic imported heat treatment plant and imported Testing equipment's, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended.

IMC Chaser are interchangeable. If one Pc. of a chaser set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing entire set.
