Steel TMT Chaser Threading Machine – Models & Capacity

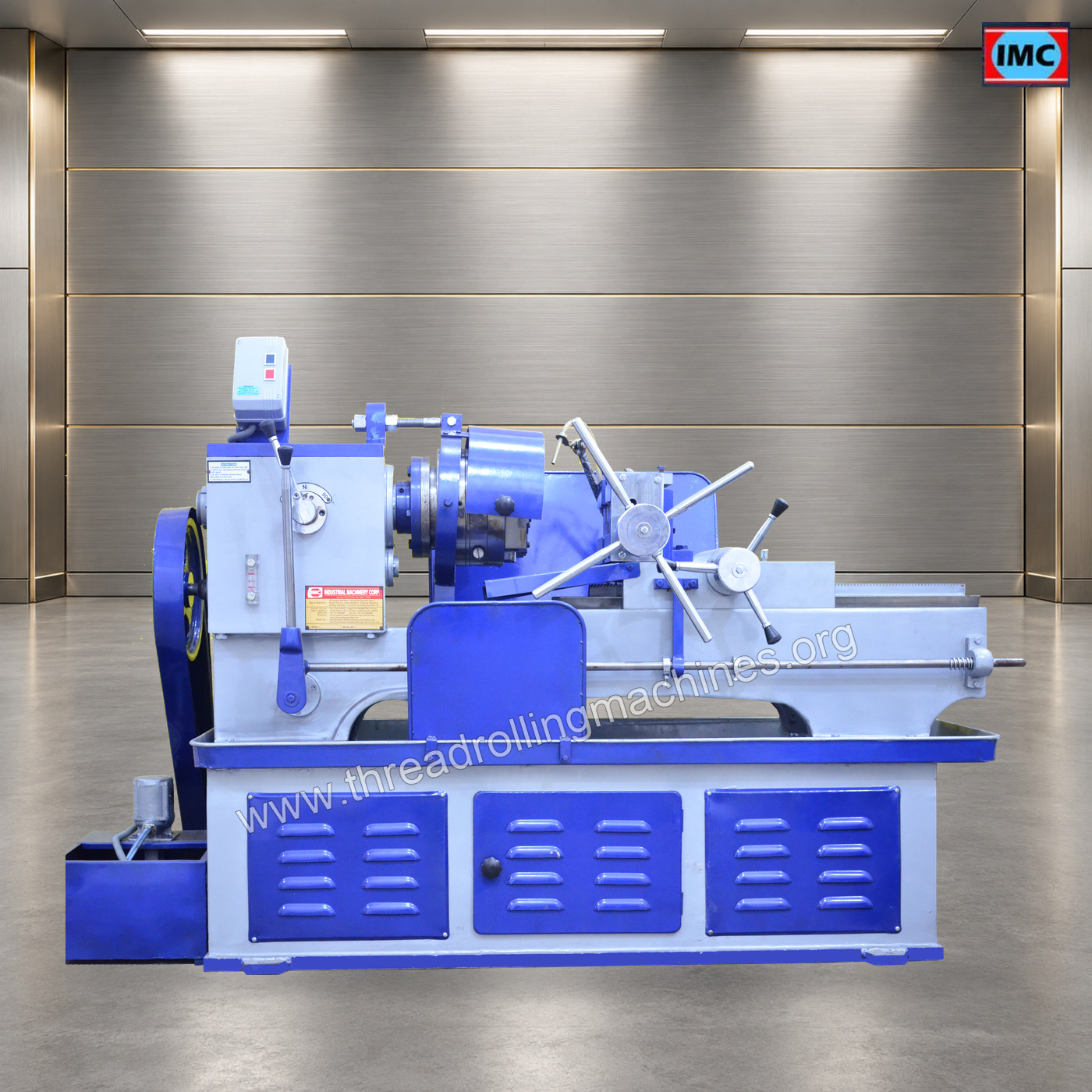

Steel TMT Chaser Rebar Threading Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 4,000
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Steel TMT Chaser Threading Machine for your component and the required production operation.

Compare the working range with the component

A model intended to cut threads on suitably prepared TMT rebar ends with chasers and a compatible die head must be assessed against the full job dimensions. Supply bar grade and diameter, prepared-end drawing, coupler system, pitch and thread length. Separate overall workpiece size from the portion processed during the operation; a single headline capacity does not describe every possible component.

Check the configuration behind the model data

Use the specification table alongside a review of the required bar-end forging or other preparation, chaser set and bar holding. Confirm units and the tool or fixture arrangement included in the proposed model. For forged-end applications, establish the forging and threading sequence together; the threader is a separate process stage. If more than one component size is needed, list the complete range and discuss the required changeovers.

Confirm the selected model in writing

Specify the acceptance requirements for prepared-end dimensions, thread gauge acceptance and coupler engagement. Ask IMC to identify the model, working range, included tooling and accessories against your drawing. Include material, batch quantities, power supply and delivery location. Select the available options and add the quantity to the Quote List. The final offer should make the configuration and application clear instead of treating the product designation as the complete technical specification.

Information to send with your enquiry

  • Bar grade and diameter
  • Prepared-end drawing
  • Coupler system
  • Pitch and thread length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Bar Threading Machine Manufacture, Rebar Threading Machine, Rebar threading machines, tmt bar threading machines, rebar threading die head, Steel TMT Chaser Rebar Threading Machine, Semi automatic TMT Bar Threading Machine, Steel TMT Chaser Rebar Threading Machine, TMT Rebar Threading Machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

We have a wide range of semi-automatic Steel TMT Chaser Rebar Threading Machine which is used for site projects and it does outside threading on TMT bars. Steel TMT Chaser Rebar Threading Machine threads the standard EN8-D TMT bar. The threading is done after the Rebar TMT bar forging process. Threading Machine is used for High Production.

Industrial Machinery Corporation has been offering a High-Speed Steel TMT Chaser Rebar Threading Machine. This Rebar Threading Machine is made from high-density alloys. This machine is manufactured by our experts using excellent quality components and cutting-edge technology. This Threading Machine is used for saving time and effort. List of threads that can be cut using TMT Rebar Threading Machine: Metric, BSP, BSPT, NPT, UNF, UNC, BSW, Acme Threads, B.S.F. This Threading Machine has features like robust construction, high performance, and durability.

Steel TMT Chaser Rebar Threading Machine needs less maintenance and works for long hours. This Machine tool's cost is very cheap. We have gained all the vital mastery and specialized know-how to make the best Rebar Threading Machine arriving in the market. We assemble our Rebar Threading Machine with all the customizations as said by the customer preceding the beginning of production. If you need to buy the TMT rebar threading machine. Industrial Machinery Corporation is a great choice, as they not only offer a vast range, but also the assurance that each machine that is sent out of their unit is a piece of excellence.

Our TMT Rebar Threading Machines are running in various countries like Abu Dhabi, Algeria, Australia, Bangladesh, Bhutan, Canada, Central America, Colombia, Germany, Ghana, Jordan, Kuwait, Lebanon, Malaysia, Maldives, Mexico, Myanmar, Nepal, Peru, Philippines, Qatar, Saudi Arabia, South Australia, Sri Lanka, Thailand, Tunisia, Turkey, U.A.E, USA, Vietnam.

Steel TMT Chaser Rebar Threading Machine Specifications:

Model

1/4" to 1"

(6MM to 25MM)

(Bed Type)

3/8" to 1.1/2"

(10MM to 40MM)

(Bed Type)

1/2" to 2.1/2"

(12MM to 65MM)

(Bed type)

Saddle Movement10"10" - 12"22"
Spindle Speed Range75-14075-14045-90
Number of Spindle Speed223
Threading Capacity1/4" to 1"3/8" to 1.1/2"1/2" to 2.1/2"
Production per Hour60-8060-8070-90
H.P. Required3 H.P.3 H.P.7.5 H.P.
Lead ScrewOptionalOptionalOptional
Weight (KG) Approx.500550990

Rebar Threading Machine Tangential Chaser

IMC Tangential Threading Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standards. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment, assure that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended. These Tangential Chasers are used in Rebar Threading Machine.

Frequently Asked Questions About Steel TMT Chaser Rebar Threading Machine

Cut threads on steel TMT rebar using a chaser-based process. Match the thread-cutting tooling to the bar end and connection requirement.

For this machine, send TMT bar grade, diameter, thread profile and end preparation. Attach the component drawing or a clearly identified sample photograph so the application can be reviewed.

Clarify the required preparation of the bar end before cutting and the method used to check the finished thread.
