Scaffolding Pipe Threading Machine – Models & Capacity

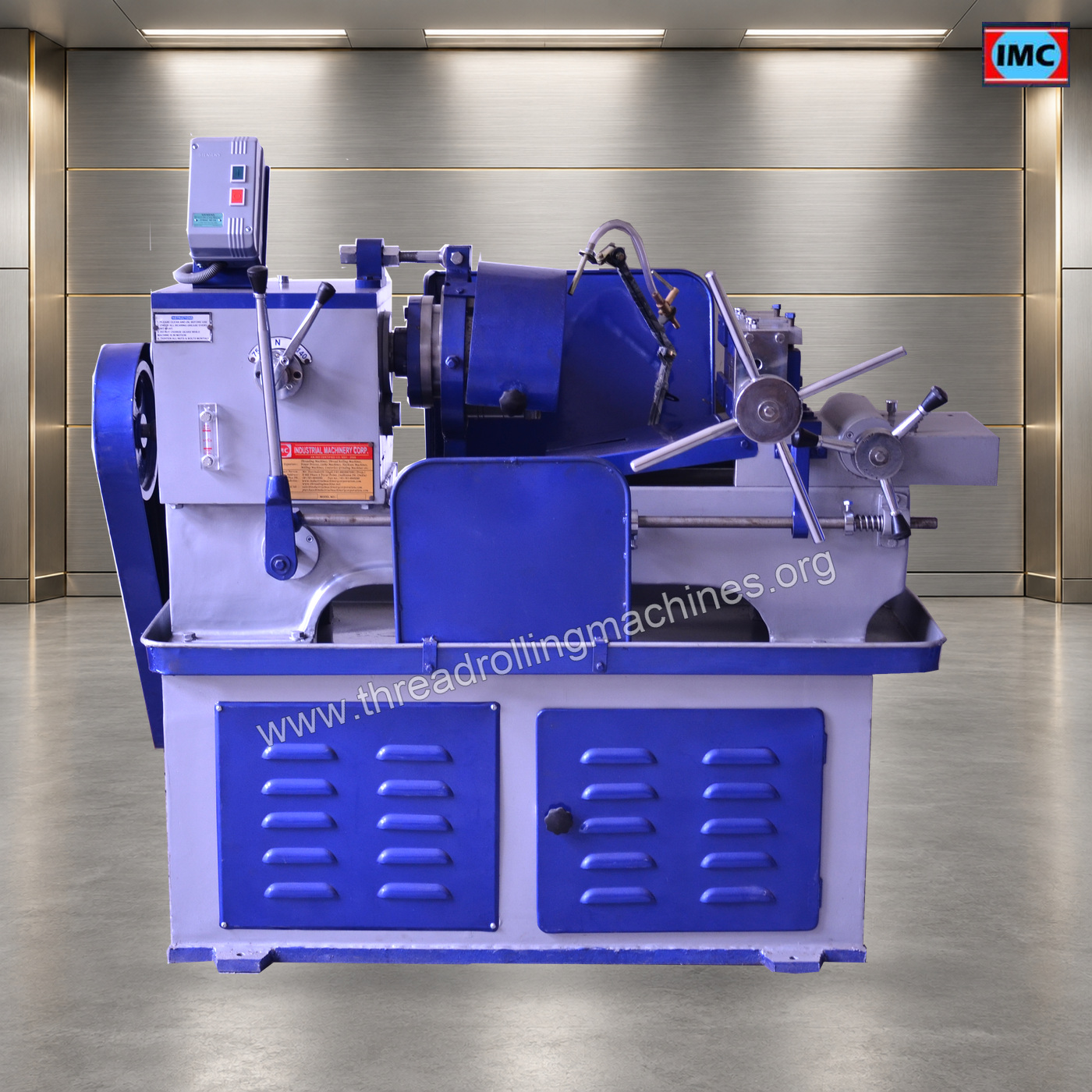

Scaffolding Pipe Threading Machine product view
PRICE & QUOTATION
Starting From US$ 7,000
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Scaffolding Pipe Threading Machine for your component and the required production operation.

Compare the working range with the component

A model intended to prepare external cut threads on suitable scaffolding pipe ends for their mating components must be assessed against the full job dimensions. Supply tube diameter, wall thickness, material, thread pitch, threaded length and mating nut drawing. Separate overall workpiece size from the portion processed during the operation; a single headline capacity does not describe every possible component.

Check the configuration behind the model data

Use the specification table alongside a review of pipe vice and supports, compatible thread-cutting chasers and available travel. Confirm units and the tool or fixture arrangement included in the proposed model. Keep thread cutting and thread rolling distinct when selecting the equipment and the starting pipe section. If more than one component size is needed, list the complete range and discuss the required changeovers.

Confirm the selected model in writing

Specify the acceptance requirements for fit with the intended scaffolding component and the specified thread dimensions. Ask IMC to identify the model, working range, included tooling and accessories against your drawing. Include material, batch quantities, power supply and delivery location. Select the available options and add the quantity to the Quote List. The final offer should make the configuration and application clear instead of treating the product designation as the complete technical specification.

Information to send with your enquiry

  • Tube diameter
  • Wall thickness
  • Material
  • Thread pitch
  • Threaded length and mating nut drawing

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Threading Machine Manufacturer, Scaffolding Pipe Threading Machine, Industrial machinery Manufacturer in India, Electric Pipe Threading Machine at Best Price in India, automatic pipe threading machine, IMC Automatic Scaffolding Pipe Thread Machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

"Scaffolding Pipe Threading Machine is divided into mainly two categories:-
  1. Scaffolding Pipe Thread Cutting Machine
  2. Scaffolding Pipe Thread Rolling Machine

Scaffolding Pipe Thread Cutting Machine


Scaffolding Pipe Thread Rolling Machine


 Scaffolding Pipe Threading Machine

Model

1/2" to 2.1/2"

(12MM to 65MM)

(Bed Type)

1/2" to 2.1/2"

(12MM to 65MM)

(Pillar type)

Saddle Movement24"16"
Spindle Speed Range45-9060-90-120
Number of Spindle Speed23
Threading Capacity1/2" to 2.1/2"1/2" to 2.1/2"
Production per Hour25-4035-60
H.P. Required7.5 H.P.7.5 H.P.
Lead ScrewOptionalOptional
Weight (KG) Approx.9901100


Frequently Asked Questions About Scaffolding Pipe Threading Machine

Prepare scaffold pipe ends for the required threaded assembly. Tube dimensions and the mating component provide the starting point for machine selection.

For this machine, send scaffolding tube outside diameter, wall thickness and mating-thread drawing. Attach the component drawing or a clearly identified sample photograph so the application can be reviewed.

Confirm that the chosen process and tooling match the scaffold component; a similar nominal pipe size is not enough.
