Pipe & Rod Internal Threading Machine – Models & Sizes

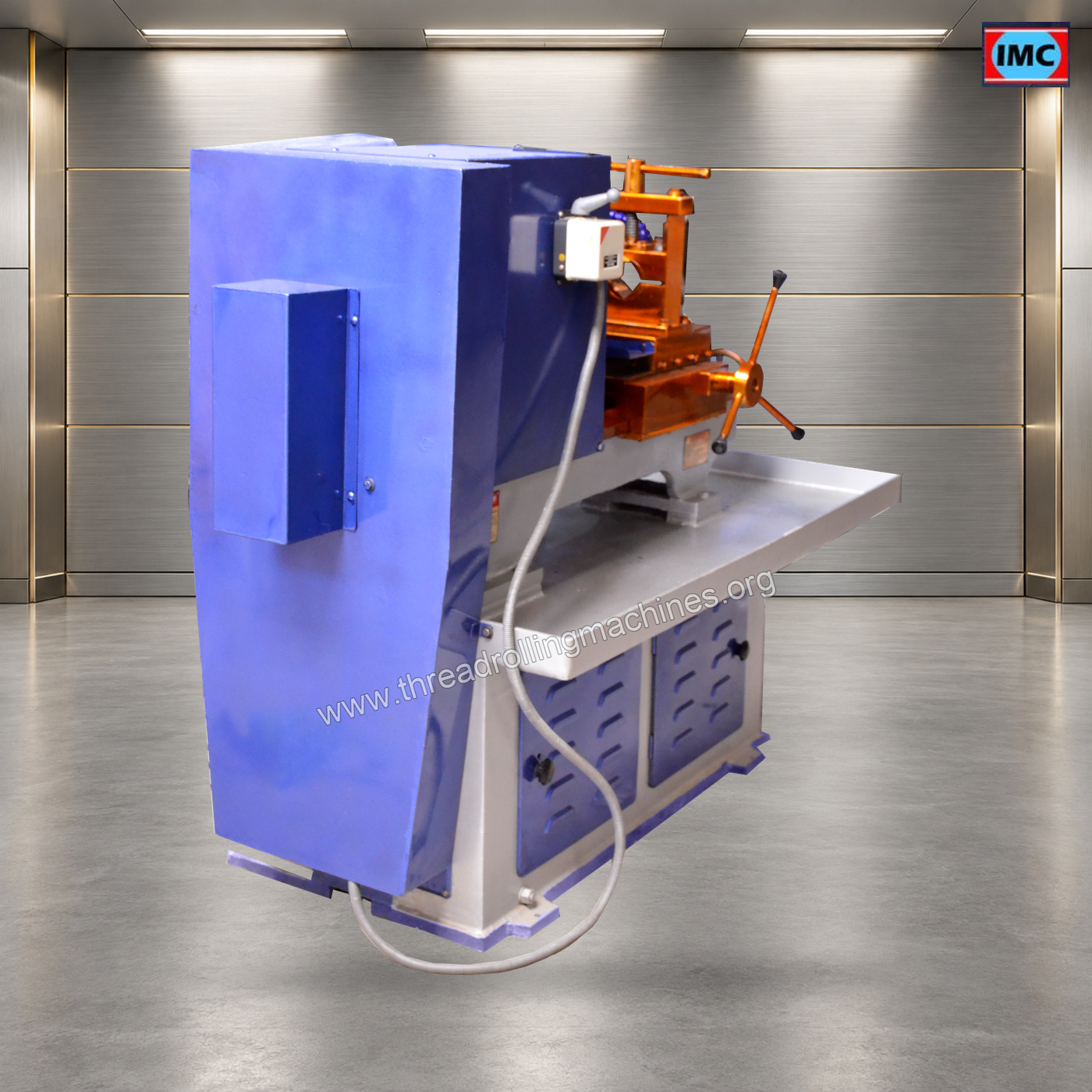

Internal Pipe Threading Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 3,500
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Pipe & Rod Internal Threading Machine for your component and the required production operation.

Compare the working range with the component

A model intended to make internal threads by tapping prepared holes in compatible pipes and bored rod components must be assessed against the full job dimensions. Supply hole diameter and depth, blind or through-hole form, material, thread standard and pitch. Separate overall workpiece size from the portion processed during the operation; a single headline capacity does not describe every possible component.

Check the configuration behind the model data

Use the specification table alongside a review of tap selection, tap holding, component alignment and chip-clearance arrangements. Confirm units and the tool or fixture arrangement included in the proposed model. Rod tapping here means an internal thread in a prepared bore, rather than external threading of a solid rod. If more than one component size is needed, list the complete range and discuss the required changeovers.

Confirm the selected model in writing

Specify the acceptance requirements for internal thread size, useful depth and acceptance with the specified gauge or mating thread. Ask IMC to identify the model, working range, included tooling and accessories against your drawing. Include material, batch quantities, power supply and delivery location. Select the available options and add the quantity to the Quote List. The final offer should make the configuration and application clear instead of treating the product designation as the complete technical specification.

Information to send with your enquiry

  • Hole diameter and depth
  • Blind or through-hole form
  • Material
  • Thread standard and pitch

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Threading Machines, Internal Pipe Threading Machine, Threading Taps, Internal Threading tap, internal threading tools, Internal Threading Machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Apart from these qualities, Internal Pipe Threading Machine manufactured at industrial machinery corporation is absolutely customer concentric all allows the user to have benefits of customization as per their specific requirements. At our manufacturing base in Ludhiana which is most advanced and sophisticated manufacturing base comprising of most advanced machines, latest of technology and most skilled technicians, we make our Internal Threading Machines with utmost care and perfection and strict care is taken that not only Internal Threading Machine but all our machines adhere to the standards, trends and parameters prevailing in the international market.

And this is the reason why our machine has all the qualities of efficiency, durability, strength, robustness and competence. The use of best quality raw material ensures that our Internal Pipe Threading Machine is sturdy enough to face all the wear and tear, breakage and abrasion that may arise in the industries and factories. The modes operand of this machine is so smooth that the work given to this machine is finished without any much Endeavor and wit reduced human efforts. The way this Internal Threading Machine is fabricated, the eminence assessment panel, ensures that there are no expected breakdowns, during operation.

Listed below are the standard features of the Internal Threading Machines that we manufacture hare ate manufacturing unit based in Ludhiana:


  1. Trapezoidal thread (as per IS - 12818)
  2. Square Thread

Here are the optional features and accessories that we provide with our Internal Threading Machines as per the customization requirements of the clients:


  1. Simple in Operation (Layman can Operate)
  2. Robust and Study design
  3. AC Servo and PLC operated
  4. Fast threading compared to conventional threading machine
  5. No setting is required for different pipe diameter
  6. No change of saw for the internal and external thread
Specifications:
Model No.  1/2” to 2”1/2" to 3"
Threading length can be cut   150 MM150 MM
Number of speed in gearbox    55
Production per hour    80 Pcs.80 Pcs.
Electrical Motor    3H.P. 960 RPM5 H.P. 960 RPM

Frequently Asked Questions About Internal Pipe Threading Machine

Produce internal pipe threads with equipment and tooling configured for the required bore. Hole preparation and chip clearance are part of the application review.

For this machine, send pipe bore, wall thickness, internal thread and material. Attach the component drawing or a clearly identified sample photograph so the application can be reviewed.

Confirm the tooling approach and the prepared bore dimensions for the specified internal thread.
